[lustre-devel] Fw: [External] : OSC cache page retention issue

Fri Apr 26 18:16:48 PDT 2024

Accidentally replied to John off-list
________________________________
From: Patrick Farrell <patrick.farrell at oracle.com>
Sent: Friday, April 26, 2024 11:15 AM
To: John Bauer <bauerj at iodoctors.com>
Subject: Re: [External] : [lustre-devel] OSC cache page retention issue

John,

Ah, this one...  OK, I'm intrigued today.

Most likely the issue is that our page cache shrinker doesn't work very well.  It's not something I've dug into in detail before, but that's the simple explanation - The kernel expresses memory pressure by calling shrinkers registered by kernel modules.  Lustre has a shrinker at the OSC level which is responsible for freeing pages from cache when there's memory pressure.

The relevant function is osc_cache_shrink_scan (which actually shrinks as well as scans).  Unfortunately it's devoid of any debug so without modifying the code to add debug, you won't be able to get any info out of it.

I see a few possible issues - the shrinker will not remove more than one RPC worth of pages from a given OSC when the shrinker is called.  This is a pretty small amount, and it's probably actually smaller - the code comments note the shrinker only requests 128 pages at a time and Lustre just tries to free what's asked for.

FWIW, the shrinker doesn't appear to have any biasing towards OSCs which are more full.  So when called, it will try to free (probably) 128 pages from the first OSC in the list, then move that OSC to the back of the list and stop.  If the kernel still needs memory, it will be called repeatedly.

So the idea at least is that the shrinker will rotate across the OSCs, freeing 128 pages each time.  It doesn't care how full they are.

Here's a possible framework for the problem.  I can't quite infer the striping and OSCs used by the files from your note - sorry, it's probably there but I'm struggling to figure it out - but...

If the file we wish were getting evicted is already in cache is on OSCs 0-3, and the new file is on OSCs, say, 0-16, so when we start, the caches for OSCs 0-3 are full and those for OSCs 4-16 are not, our shrinker design would not preferentially drain the full ones.  It would just start draining and then balance the drain equally across all OSCs, so if the system as a whole is at memory pressure, and the source of the memory pressure is using all OSCs, any OSCs which are full will stay full - since they are being refilled.  There will be no rebalancing of usage between those which are full and those which are not.

Does this actually line up with your problem?  Or are the files on separate OSCs?

Even if this isn't the issue, the problem is very likely something in our shrinker implementation.

Regards,
Patrick

________________________________
From: lustre-devel <lustre-devel-bounces at lists.lustre.org> on behalf of John Bauer <bauerj at iodoctors.com>
Sent: Friday, April 26, 2024 10:26 AM
To: lustre-devel at lists.lustre.org <lustre-devel at lists.lustre.org>
Subject: [External] : [lustre-devel] OSC cache page retention issue

 My first posting here.  I hope it proves to be interesting.

I have an issue that I had posted to lustre-discuss some time back and Andreas Dilger recommended I post to lustre-devel.  I have a job that does I/O to 3 files on a Lustre file system.  The first file, SCRATCH, that gets written and read in the first 50 seconds of the job. then nothing until rtc=2950 (rtc is real time clock, in seconds). The second file, SCR300, is written and read thoughout the job.  I attach a couple of images below to indicate the activity.  In each image, the bottom frame indicates how the file is being accessed, reads and writes, over time.  The Y axis indicates the part of the file being accessed and the X indicates the time when the access occured.  The top frame in each image is the amount of page cache used by each OSC that the given file is striped on ( 4x1M ), versus time.  The third file is trivial ( 26MB in size and 41MB transferred ) and will not be mentioned further.

What is of interest is that the 4 OSC's associated with SCRATCH do not give up their cache page memory until rtc=2918, despite the file not being accessed from rtc=50 until rtc=2950, especially in light of the intense memory pressure created by the reading and writing of the SCR300 file.

Thinking this was virtual memory related, I decided to plot all of the values in /proc/vmstat versus time while the job was running and see if something of interest was occurring at rtc=2918.  It turns out that the only thing of interest is the value slabs_scanned is constant until rtc=2918, then has a spike, as shown in the 3rd image below.

For completeness, I have also included a plot of several /proc/meminfo values versus time ( the 4th image below ).

This was run on a dedicated 64GB node.  It can be seen in the meminfo plot that Lustre is using, at maximum, 50% of system memory.  The 4 OSC's of the SCRATCH file are holding on to aggregate 22GB of memory of 32GB maximum used by Lustre.  The SCR300 file is left with 10GB of memory for repeated forward and backward reading of a 70GB region of the 104GB file.  The SCR300 could really use the 22GB being held for SCRATCH.

Lustre version is 2.14.0_ddn98.

Single process, single host ( 2 NUMA nodes )

For completeness I have included a plot of memory info for each of the 2 NUMA nodes.  5th image below.  It can clearly be seen that memory on both numa nodes are active.

I should point out that this is not a new problem, nor unique to the current system I am running it on.  I had first observed it back in 2015 on an internal system at Cray Inc.  A plot of the SCRATCH file position activity is shown in the 6th image below.  This was the actual MSC.Nastran job running, and there was  13150 seconds of I/O wait out of 18213 second run.  In this job, the 4 OSC's for the SCRATCH file never released their memory, despite the file not being accessed for 18000 seconds ( 5 hours ).

Any light that could be cast upon this subject is welcomed.

John

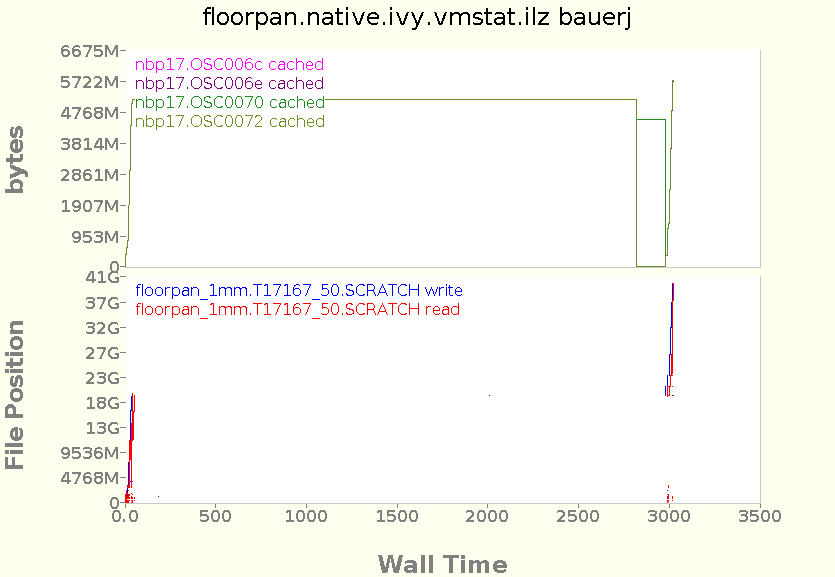

The SCRATCH file activity and OSC memory usage

https://www.dropbox.com/scl/fi/mg55d6xv6hanmsebn4kvq/floorpan_SCRATCH.png?rlkey=rjkczx394n9mg54xtos87s0wd&st=zx56loc2&dl=0<https://urldefense.com/v3/__https://www.dropbox.com/scl/fi/mg55d6xv6hanmsebn4kvq/floorpan_SCRATCH.png?rlkey=rjkczx394n9mg54xtos87s0wd&st=zx56loc2&dl=0__;!!ACWV5N9M2RV99hQ!Km2c9xVnQ_BpUQ_AOFMN3K5SjxMEuVgpx7NPRzEnGLLeS2Itg3w2y02BJJNx1gZOkbH3CM26NI-JpmsRcFSFtg$>

[https://www.dropbox.com/scl/fi/mg55d6xv6hanmsebn4kvq/floorpan_SCRATCH.png?rlkey=rjkczx394n9mg54xtos87s0wd&st=yauwg1uo&dl=0]

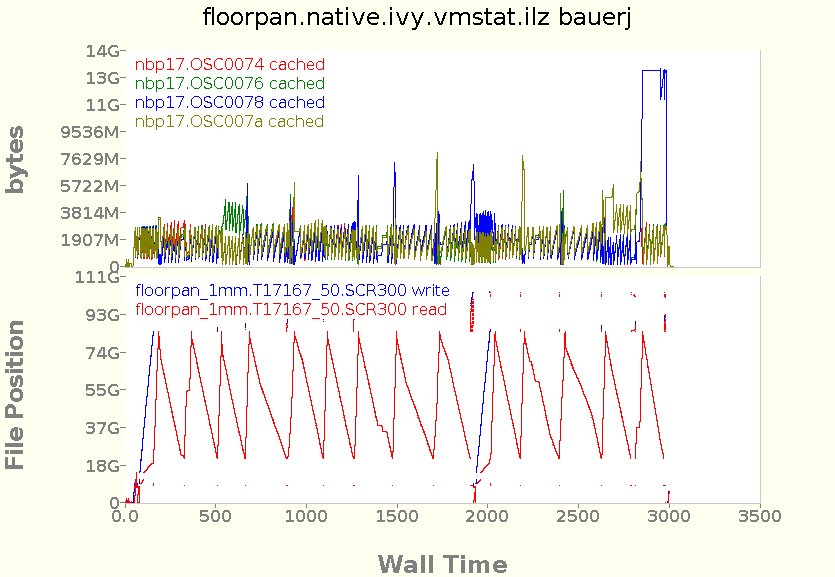

The SCR300 file activity and OSC memory usage

https://www.dropbox.com/scl/fi/e8s4ku7zb2h6ndcwpsr3g/floorpan_SCR300.png?rlkey=elxv51uqjxv7pqwj6w3o4tmew&st=1yapxmen&dl=0<https://urldefense.com/v3/__https://www.dropbox.com/scl/fi/e8s4ku7zb2h6ndcwpsr3g/floorpan_SCR300.png?rlkey=elxv51uqjxv7pqwj6w3o4tmew&st=1yapxmen&dl=0__;!!ACWV5N9M2RV99hQ!Km2c9xVnQ_BpUQ_AOFMN3K5SjxMEuVgpx7NPRzEnGLLeS2Itg3w2y02BJJNx1gZOkbH3CM26NI-Jpmsmo4TYdw$>

[https://www.dropbox.com/scl/fi/e8s4ku7zb2h6ndcwpsr3g/floorpan_SCR300.png?rlkey=elxv51uqjxv7pqwj6w3o4tmew&st=cjwzzohl&dl=0]

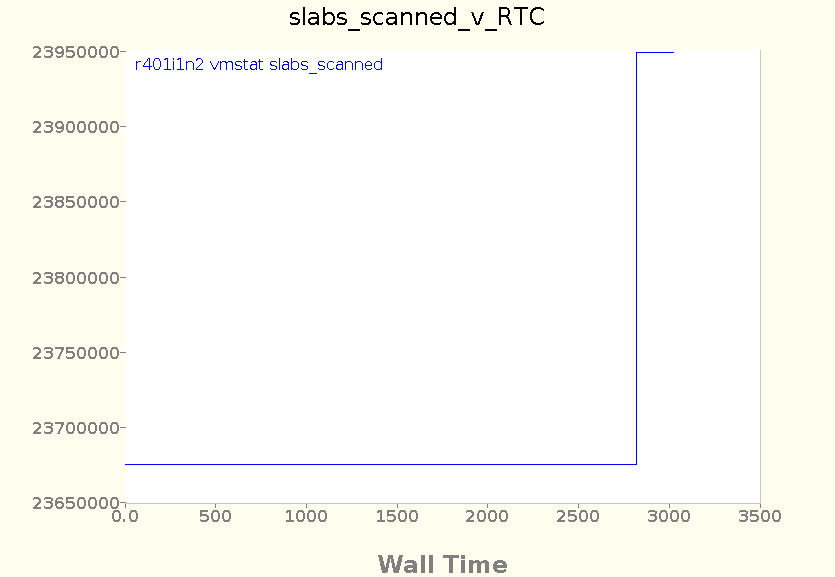

The slabs_scanned from /proc/vmstat versus time.

https://www.dropbox.com/scl/fi/qwg2uml7hpi204cazfynw/floorpan_slabs_scanned.png?rlkey=t4bhpobhwprhtlecbfsz1sy09&st=mjepc6uw&dl=0<https://urldefense.com/v3/__https://www.dropbox.com/scl/fi/qwg2uml7hpi204cazfynw/floorpan_slabs_scanned.png?rlkey=t4bhpobhwprhtlecbfsz1sy09&st=mjepc6uw&dl=0__;!!ACWV5N9M2RV99hQ!Km2c9xVnQ_BpUQ_AOFMN3K5SjxMEuVgpx7NPRzEnGLLeS2Itg3w2y02BJJNx1gZOkbH3CM26NI-Jpmtzuafs1Q$>

[https://www.dropbox.com/scl/fi/qwg2uml7hpi204cazfynw/floorpan_slabs_scanned.png?rlkey=t4bhpobhwprhtlecbfsz1sy09&st=74tmv31g&dl=0]

Info from /proc/meminfo plotted versus time.

https://www.dropbox.com/scl/fi/ddd99mrt26hto4fp81ayn/floorpan_meminfo.png?rlkey=401jpennt2u3343yjp2llaiqj&st=09qaagpk&dl=0<https://urldefense.com/v3/__https://www.dropbox.com/scl/fi/ddd99mrt26hto4fp81ayn/floorpan_meminfo.png?rlkey=401jpennt2u3343yjp2llaiqj&st=09qaagpk&dl=0__;!!ACWV5N9M2RV99hQ!Km2c9xVnQ_BpUQ_AOFMN3K5SjxMEuVgpx7NPRzEnGLLeS2Itg3w2y02BJJNx1gZOkbH3CM26NI-Jpmt_FqjmRg$>

[https://www.dropbox.com/scl/fi/ddd99mrt26hto4fp81ayn/floorpan_meminfo.png?rlkey=401jpennt2u3343yjp2llaiqj&st=irguyp12&dl=0]

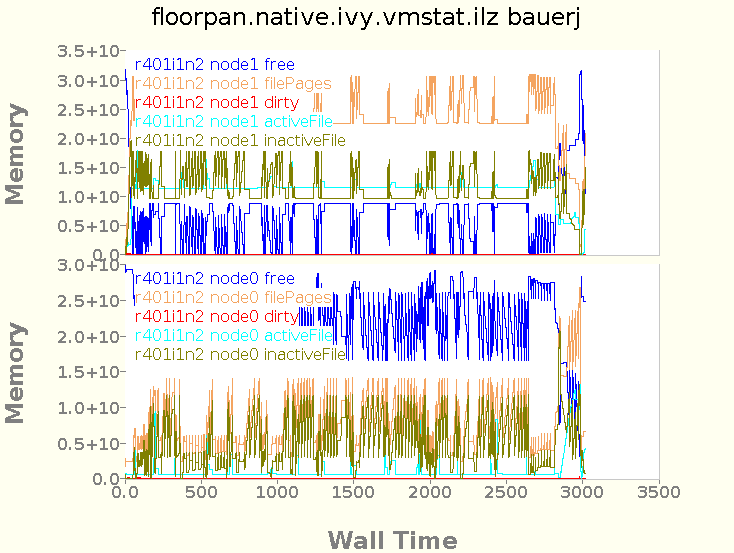

Memory info for the 2 numa nodes versus time.

https://www.dropbox.com/scl/fi/g9auqkhzhhmp11m08hstl/floorpan_nodemem.png?rlkey=bzbmjkvb6b1lgrgj4h9xxvbny&st=ihhu4c94&dl=0<https://urldefense.com/v3/__https://www.dropbox.com/scl/fi/g9auqkhzhhmp11m08hstl/floorpan_nodemem.png?rlkey=bzbmjkvb6b1lgrgj4h9xxvbny&st=ihhu4c94&dl=0__;!!ACWV5N9M2RV99hQ!Km2c9xVnQ_BpUQ_AOFMN3K5SjxMEuVgpx7NPRzEnGLLeS2Itg3w2y02BJJNx1gZOkbH3CM26NI-JpmsL2pseug$>

[https://www.dropbox.com/scl/fi/g9auqkhzhhmp11m08hstl/floorpan_nodemem.png?rlkey=bzbmjkvb6b1lgrgj4h9xxvbny&st=ihhu4c94&dl=0]

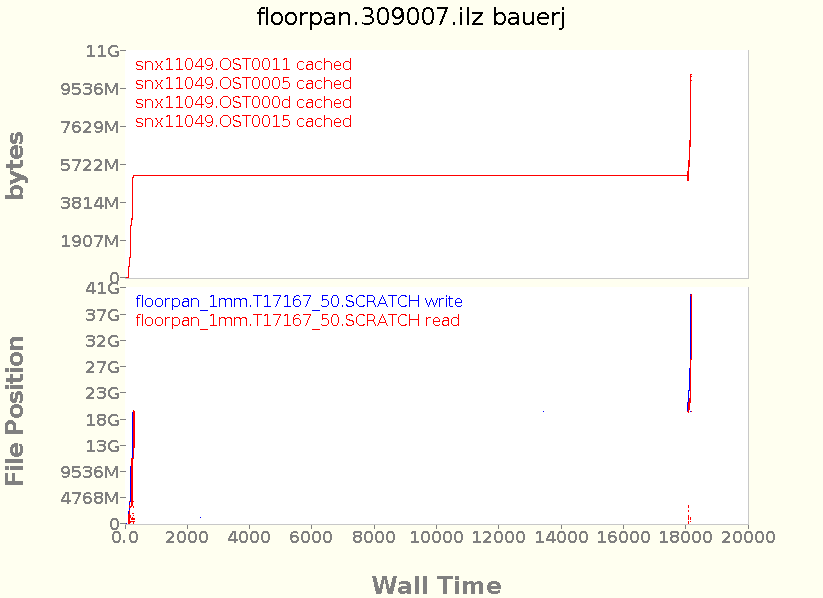

This is from the original job run back in 2015, internally at Cray Inc.  This was a 128GB system.

https://www.dropbox.com/scl/fi/5bwyqxjp8gi65c7qvnmcn/floorpan_orig.png?rlkey=j629zrdnuwm4lwiqv9wh6mxrt&st=4bo6c1jy&dl=0<https://urldefense.com/v3/__https://www.dropbox.com/scl/fi/5bwyqxjp8gi65c7qvnmcn/floorpan_orig.png?rlkey=j629zrdnuwm4lwiqv9wh6mxrt&st=4bo6c1jy&dl=0__;!!ACWV5N9M2RV99hQ!Km2c9xVnQ_BpUQ_AOFMN3K5SjxMEuVgpx7NPRzEnGLLeS2Itg3w2y02BJJNx1gZOkbH3CM26NI-Jpms-CIQn1A$>

[https://www.dropbox.com/scl/fi/5bwyqxjp8gi65c7qvnmcn/floorpan_orig.png?rlkey=j629zrdnuwm4lwiqv9wh6mxrt&st=cb2sd1bc&dl=0]

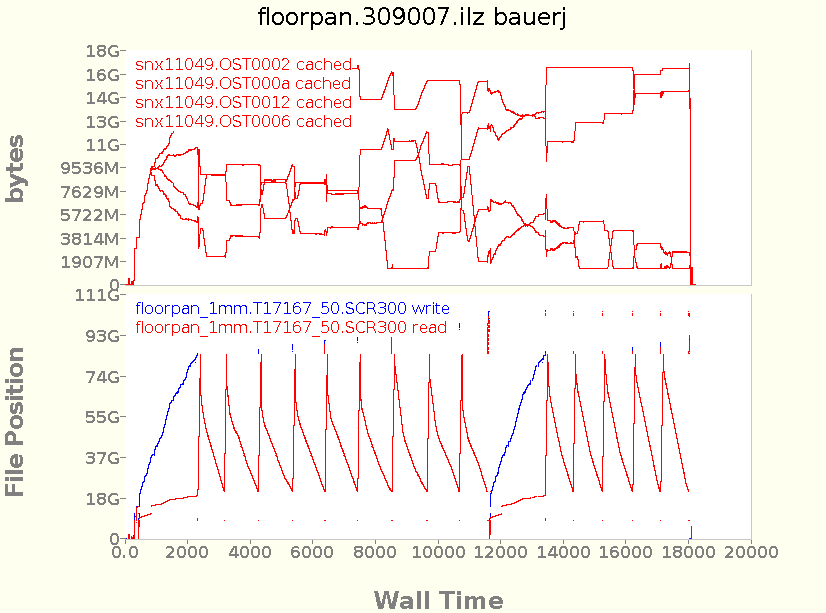

The SCR300 file for the original job back in 2015

https://www.dropbox.com/scl/fi/sr969igg0c1hvzn0kaq47/floorpan_orig_SCR300.png?rlkey=q4rg34s78ytxal4dx4k3b26rd&st=o2kzxa2z&dl=0<https://urldefense.com/v3/__https://www.dropbox.com/scl/fi/sr969igg0c1hvzn0kaq47/floorpan_orig_SCR300.png?rlkey=q4rg34s78ytxal4dx4k3b26rd&st=o2kzxa2z&dl=0__;!!ACWV5N9M2RV99hQ!Km2c9xVnQ_BpUQ_AOFMN3K5SjxMEuVgpx7NPRzEnGLLeS2Itg3w2y02BJJNx1gZOkbH3CM26NI-JpmsuNAOxkQ$>

[https://www.dropbox.com/scl/fi/sr969igg0c1hvzn0kaq47/floorpan_orig_SCR300.png?rlkey=q4rg34s78ytxal4dx4k3b26rd&st=o2kzxa2z&dl=0]
