[lustre-discuss] Problem in confugration of MGS and MDT server in lustre.

Tue Dec 20 01:34:07 PST 2022

Hi

Yes, both parameters at the same time are valid.

Regarding the RPMS you installed. You picked a new kernel, did you reboot to use it? If not you should.
You are missing those 2 packages, I’m even surprised Yum did not complain about missing deps.
kmod-lustre-2.15.1-1.el8.x86_64.rpm<https://downloads.whamcloud.com/public/lustre/latest-release/el8.6/server/RPMS/x86_64/kmod-lustre-2.15.1-1.el8.x86_64.rpm>
kmod-lustre-osd-ldiskfs-2.15.1-1.el8.x86_64.rpm<https://downloads.whamcloud.com/public/lustre/latest-release/el8.6/server/RPMS/x86_64/kmod-lustre-osd-ldiskfs-2.15.1-1.el8.x86_64.rpm>

lustre-ldiskfs-dkms: you installed ldiskfs support as a DKMS package but not Lustre as a DKMS too. I recommend using the same for every package, so here, install the osd package above instead of your DKMS one.

Probably the best for you is to setup https://downloads.whamcloud.com/public/lustre/latest-release/el8.6/server/ as YUM additional repository.

Aurélien

De : lustre-discuss <lustre-discuss-bounces at lists.lustre.org> au nom de Taner KARAGÖL via lustre-discuss <lustre-discuss at lists.lustre.org>
Répondre à : Taner KARAGÖL <karagol at aselsan.com.tr>
Date : mardi 20 décembre 2022 à 07:12
À : Nick dan <nickdan2999 at gmail.com>
Cc : "lustre-discuss at lists.lustre.org" <lustre-discuss at lists.lustre.org>
Objet : RE: [EXTERNAL][lustre-discuss] Problem in confugration of MGS and MDT server in lustre.

CAUTION: This email originated from outside of the organization. Do not click links or open attachments unless you can confirm the sender and know the content is safe.

UNCLASSIFIED

Hi,

Is it valid to use two parameters at the same time?  “--mgs –mdt”   I dont think so.

Regards,

From: lustre-discuss <lustre-discuss-bounces at lists.lustre.org> On Behalf Of Nick dan via lustre-discuss
Sent: Tuesday, December 20, 2022 7:17 AM
To: lustre-discuss at lists.lustre.org
Subject: [lustre-discuss] Problem in confugration of MGS and MDT server in lustre.

Hi,
Nick here Trying to configure Lustre MGS and MDT on Redhat 8.6.
Referred from  https://www.lustre.org/
Successfully downloaded and installed the following packages by using yum install command:

yum install https://downloads.whamcloud.com/public/lustre/latest-release/el8.6/server/RPMS/x86_64/kernel-4.18.0-372.9.1.el8_lustre.x86_64.rpm
yum install https://downloads.whamcloud.com/public/lustre/latest-release/el8.6/server/RPMS/x86_64/lustre-2.15.1-1.el8.x86_64.rpm
yum install https://downloads.whamcloud.com/public/lustre/latest-release/el8.6/server/RPMS/x86_64/lustre-ldiskfs-dkms-2.15.1-1.el8.noarch.rpm
yum install https://downloads.whamcloud.com/public/lustre/latest-release/el8.6/server/RPMS/x86_64/lustre-osd-ldiskfs-mount-2.15.1-1.el8.x86_64.rpm
yum install https://downloads.whamcloud.com/public/e2fsprogs/latest/el8/RPMS/x86_64/e2fsprogs-1.46.2.wc5-0.el8.x86_64.rpm
yum install https://downloads.whamcloud.com/public/e2fsprogs/latest/el8/RPMS/x86_64/e2fsprogs-libs-1.46.2.wc5-0.el8.x86_64.rpm
yum install https://downloads.whamcloud.com/public/e2fsprogs/latest/el8/RPMS/x86_64/libcom_err-1.46.2.wc5-0.el8.x86_64.rpm
yum install https://downloads.whamcloud.com/public/e2fsprogs/latest/el8/RPMS/x86_64/libss-1.46.2.wc5-0.el8.x86_64.rpm

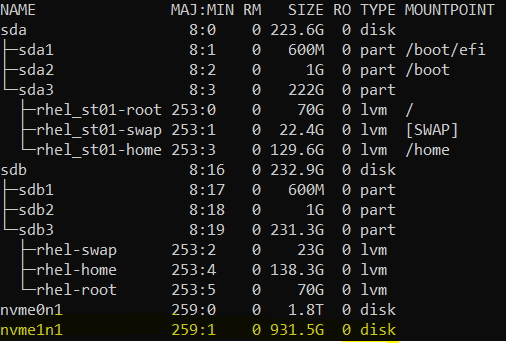

After this trying to do mkfs.lustre on my available NVMe-disk(nvme1n1)Mentioned in the below Fig
[cid:image001.png at 01D9145E.95FCE300]

And did the mkfs.lusre on it and getting the error .

mkfs.lustre --fsname=lustre  --mgs --mdt --index=0  /dev/nvme1n1

   Permanent disk data:
Target:     lustre:MDT0000
Index:      0
Lustre FS:  lustre
Mount type: ldiskfs
Flags:      0x65
              (MDT MGS first_time update )
Persistent mount opts: user_xattr,errors=remount-ro
Parameters:

checking for existing Lustre data: not found
device size = 953869MB
formatting backing filesystem ldiskfs on /dev/nvme1n1
        target name   lustre:MDT0000
        kilobytes     976762584
        options        -J size=4096 -I 1024 -i 2560 -q -O dirdata,uninit_bg,^extents,dir_nlink,quota,project,huge_file,ea_inode,large_dir,^fast_commit,flex_bg -E lazy_journal_init="0",lazy_itable_init="0" -F
mkfs_cmd = mke2fs -j -b 4096 -L lustre:MDT0000  -J size=4096 -I 1024 -i 2560 -q -O dirdata,uninit_bg,^extents,dir_nlink,quota,project,huge_file,ea_inode,large_dir,^fast_commit,flex_bg -E lazy_journal_init="0",lazy_itable_init="0" -F /dev/nvme1n1 976762584k
mkfs.lustre: Unable to mount /dev/nvme1n1: No such device
Is the ldiskfs module available?
mkfs.lustre FATAL: failed to write local files
mkfs.lustre: exiting with 19 (No such device)

Can you help where am I going wrong?

Regards,

Nick
