[lustre-discuss] Fwd: Regarding Client Configuration of Lustre

[Nick dan]

---------- Forwarded message ---------
From: Nick dan <nickdan2999 at gmail.com>
Date: Thu, 29 Dec 2022 at 17:38
Subject: Re: Regarding Client Configuration of Lustre
To: <lustre-discuss at lists.lustre.org>, <
lustre-discuss-owner at lists.lustre.org>, <info at whamcloud.com>, <
lustre-discuss-request at lists.lustre.org>, Taner KARAGÖL <
karagol at aselsan.com.tr>, Degremont, Aurelien <degremoa at amazon.fr>, <
shall at jumptrading.com>, <firatyilmazz at gmail.com>


I am using Redhat 8.6 (  Linux 4.18.0-372.9.1.el8_lustre.x86_64)
[image: image.png]

[image: image.png]
[image: image.png]
I have configured mds and mgs on the same server

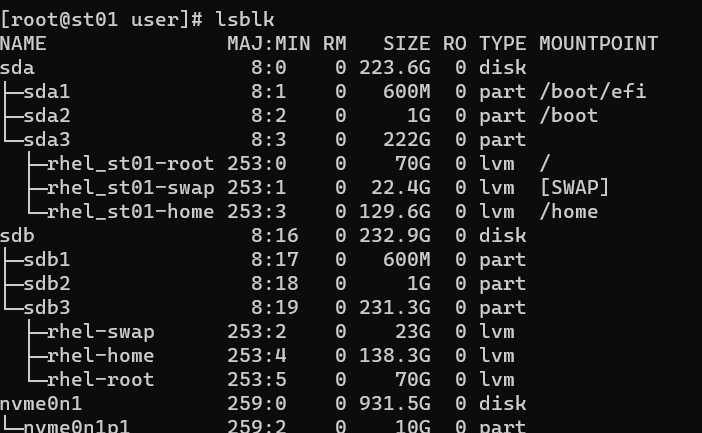

I have created partition of the nvme disk as follows
[image: image.png]

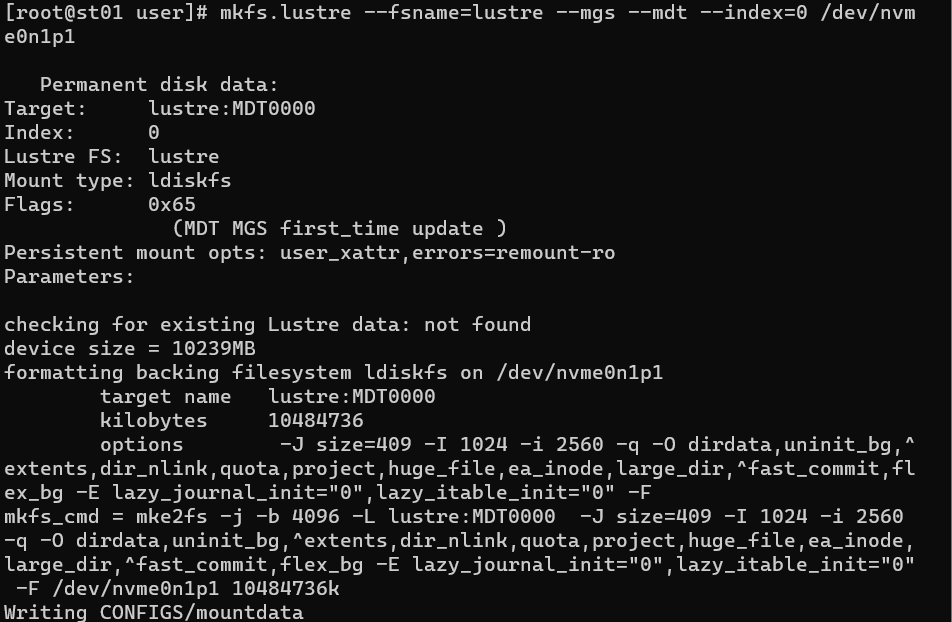

After mkfs.lustre
[image: image.png]

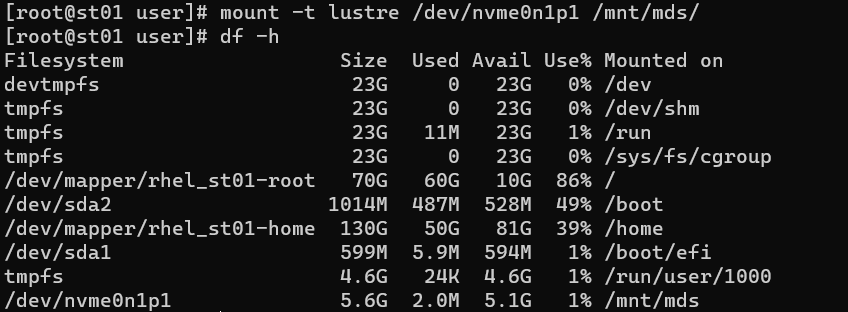

Mounting the filesystem on directory /mnt/mds
[image: image.png]

Configuring lnet as follows
[image: image.png]

-------------------------------------------------------------------------------------------------------------------------------------------
Now on the second machine, I have installed same packages as above

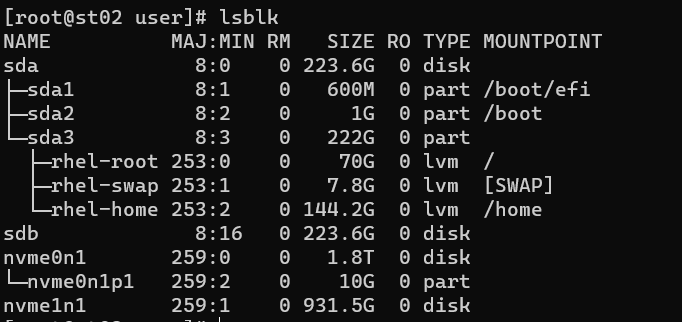

I am trying to configure OSS and OST on my second server

[image: image.png]

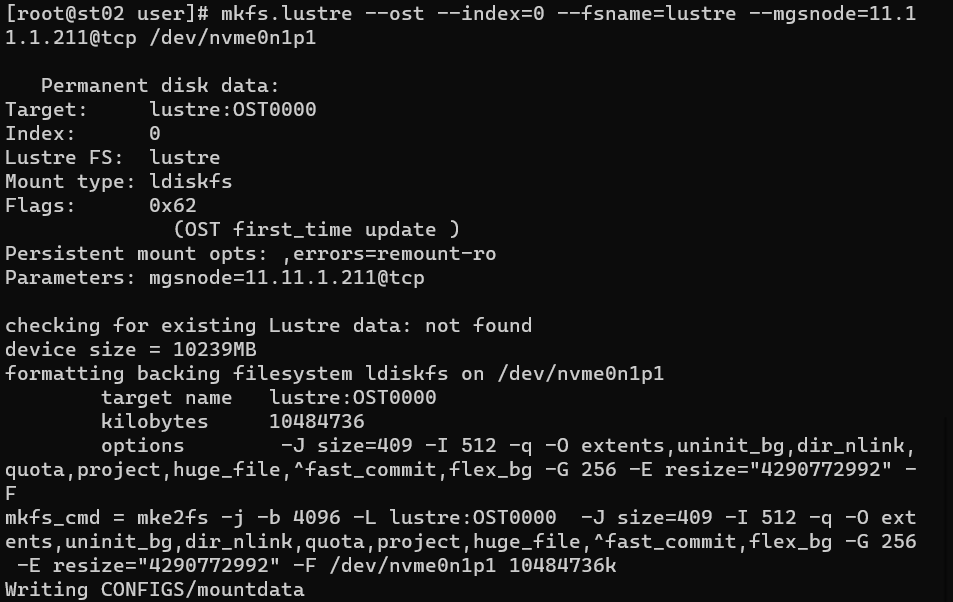

mkfs
[image: image.png]

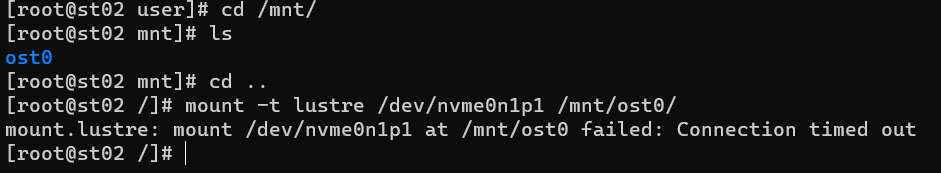

And after mounting, I am getting Connection timed out error
[image: image.png]

Can you tell where am I getting wrong?

On Thu, 29 Dec 2022 at 14:50, Nick dan <nickdan2999 at gmail.com> wrote:

> I am using RedHat 8.6
> Kernel Version:  Linux 4.18.0-372.9.1.el8_lustre.x86_64
>
> I have configured MDS and OSS Server (using the same OS)
> Now I want to configure the Lustre Client.

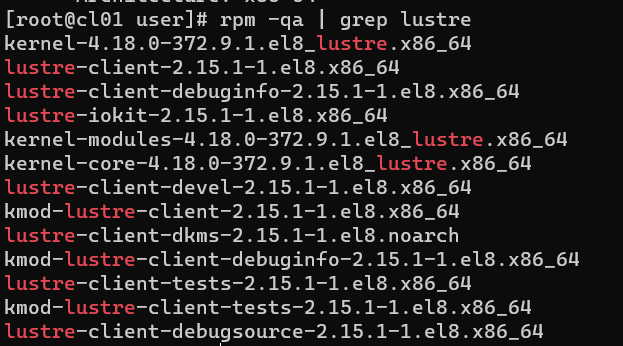

> I have installed the following packages.
> [image: image.png]
>
> Erro:
> [image: image.png]
> Can you tell what else needs to be done?
> Also, what other packages need to be installed?
>
> How to move ahead with the client configuration?
>
> Regards,
> Nick
>
