[lustre-discuss] Lustre Configuration
James Lam
unison2004 at hotmail.com
Sun Jan 1 23:11:22 PST 2023
Could you dump2fs the partition to see what’s inside?
Sent from Mail<https://go.microsoft.com/fwlink/?LinkId=550986> for Windows
From: Nick dan via lustre-discuss<mailto:lustre-discuss at lists.lustre.org>
Sent: Monday, January 2, 2023 12:28 PM
To: lustre-discuss at lists.lustre.org<mailto:lustre-discuss at lists.lustre.org>; lustre-discuss-request at lists.lustre.org<mailto:lustre-discuss-request at lists.lustre.org>; lustre-discuss-owner at lists.lustre.org<mailto:lustre-discuss-owner at lists.lustre.org>; Degremont, Aurelien<mailto:degremoa at amazon.fr>; info at whamcloud.com<mailto:info at whamcloud.com>; firatyilmazz at gmail.com<mailto:firatyilmazz at gmail.com>; Taner KARAGÖL<mailto:karagol at aselsan.com.tr>
Subject: [lustre-discuss] Lustre Configuration
I am using Redhat 8.6 ( Linux 4.18.0-372.9.1.el8_lustre.x86_64)
[root at st01 user]# uname -a
Linux st01 4.18.0-372.9.1.el8_lustre.x86_64 #1 SMP Wed Aug 10 18:19:05 UTC 2022 x86_64 x86_64 x86_64 GNU/Linux
Lustre packages:
[root at st01 user]# rpm -qa | lustre grep
bash: lustre: command not found...
[root at st01 user]# rpm -qa | grep lustre
kernel-modules-4.18.0-372.9.1.el8_lustre.x86_64
kmod-lustre-osd-ldiskfs-2.15.1-1.el8.x86_64
pcp-pmda-lustrecomm-5.3.5-8.el8.x86_64
python3-perf-4.18.0-372.9.1.el8_lustre.x86_64
kernel-devel-4.18.0-372.9.1.el8_lustre.x86_64
lustre-osd-ldiskfs-mount-2.15.1-1.el8.x86_64
lustre-iokit-2.15.1-1.el8.x86_64
kernel-core-4.18.0-372.9.1.el8_lustre.x86_64
kmod-lustre-osd-ldiskfs-debuginfo-2.15.1-1.el8.x86_64
lustre-debugsource-2.15.1-1.el8.x86_64
lustre-2.15.1-1.el8.x86_64
lustre-tests-2.15.1-1.el8.x86_64
kernel-debuginfo-common-x86_64-4.18.0-372.9.1.el8_lustre.x86_64
kmod-lustre-debuginfo-2.15.1-1.el8.x86_64
python3-perf-debuginfo-4.18.0-372.9.1.el8_lustre.x86_64
lustre-devel-2.15.1-1.el8.x86_64
kmod-lustre-tests-debuginfo-2.15.1-1.el8.x86_64
kernel-debuginfo-4.18.0-372.9.1.el8_lustre.x86_64
perf-4.18.0-372.9.1.el8_lustre.x86_64
perf-debuginfo-4.18.0-372.9.1.el8_lustre.x86_64
kmod-lustre-2.15.1-1.el8.x86_64
lustre-ldiskfs-dkms-2.15.1-1.el8.noarch
kmod-lustre-tests-2.15.1-1.el8.x86_64
kernel-4.18.0-372.9.1.el8_lustre.x86_64
lustre-debuginfo-2.15.1-1.el8.x86_64
pcp-pmda-lustre-5.3.5-8.el8.x86_64
e2fsprog packages
[root at st01 user]# rpm -qa | grep e2fsprog
e2fsprogs-libs-1.46.2.wc5-0.el8.x86_64
e2fsprogs-debuginfo-1.46.2.wc5-0.el8.x86_64
e2fsprogs-debugsource-1.46.2.wc5-0.el8.x86_64
e2fsprogs-libs-debuginfo-1.46.2.wc5-0.el8.x86_64
e2fsprogs-devel-1.46.2.wc5-0.el8.x86_64
e2fsprogs-1.46.2.wc5-0.el8.x86_64
e2fsprogs-static-1.46.2.wc5-0.el8.x86_64
[root at st01 user]# lsblk
NAME MAJ:MIN RM SIZE RO TYPE MOUNTPOINT
sda 8:0 0 223.6G 0 disk
├─sda1 8:1 0 600M 0 part /boot/efi
├─sda2 8:2 0 1G 0 part /boot
└─sda3 8:3 0 222G 0 part
├─rhel_st01-root 253:0 0 70G 0 lvm /
├─rhel_st01-swap 253:1 0 22.4G 0 lvm [SWAP]
└─rhel_st01-home 253:3 0 129.6G 0 lvm /home
sdb 8:16 0 232.9G 0 disk
├─sdb1 8:17 0 600M 0 part
├─sdb2 8:18 0 1G 0 part
└─sdb3 8:19 0 231.3G 0 part
├─rhel-swap 253:2 0 23G 0 lvm
├─rhel-home 253:4 0 138.3G 0 lvm
└─rhel-root 253:5 0 70G 0 lvm
nvme0n1 259:0 0 931.5G 0 disk
└─nvme0n1p1 259:2 0 10G 0 part

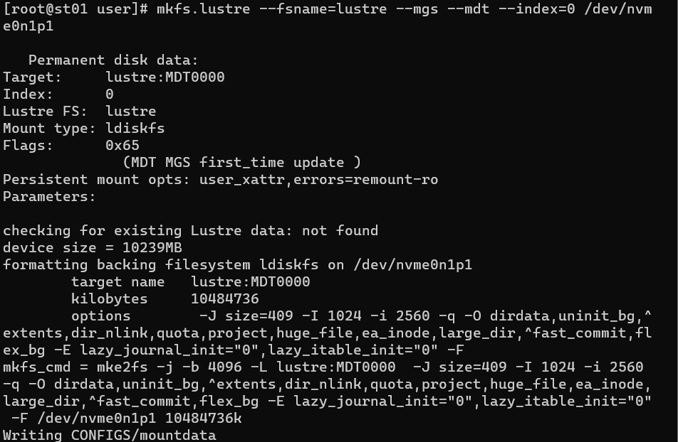

mkfs lustre
[cid:image006.png at 01D91EBC.8BD83E70]

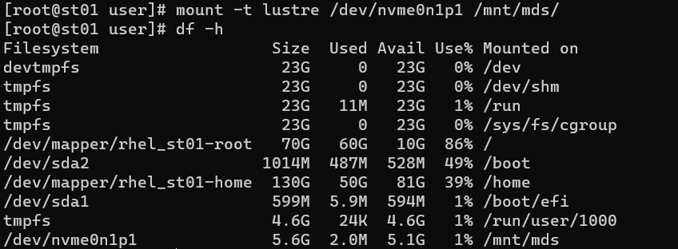

mounting lustre file system on directory /mnt/mds
[cid:image007.png at 01D91EBC.8BD83E70]

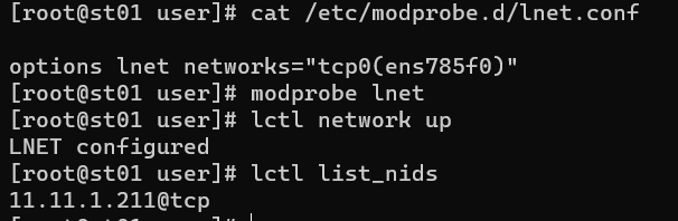

Configured lnet
[cid:image008.png at 01D91EBC.8BD83E70]
Installed the same packages on the second server. I am trying to configure OSS and OST on my second server
[root at st02 user]# lsblk
NAME MAJ:MIN RM SIZE RO TYPE MOUNTPOINT
sda 8:0 0 223.6G 0 disk
├─sda1 8:1 0 600M 0 part /boot/efi
├─sda2 8:2 0 1G 0 part /boot
└─sda3 8:3 0 222G 0 part
├─rhel-root 253:0 0 70G 0 lvm /
├─rhel-swap 253:1 0 7.8G 0 lvm [SWAP]
└─rhel-home 253:2 0 144.2G 0 lvm /home
sdb 8:16 0 223.6G 0 disk
nvme0n1 259:0 0 1.8T 0 disk
└─nvme0n1p1 259:2 0 10G 0 part
nvme1n1 259:1 0 931.5G 0 disk
mkfs
[cid:image009.png at 01D91EBC.8BD83E70]
And after mounting, I am getting Connection timed out error
[cid:image010.png at 01D91EBC.8BD83E70]
Can you tell where am I getting wrong?
