[lustre-discuss] About Lustre small files performace(8k) improve

[王烁斌]

Hi all,



This is my Lustre FS.
UUID                   1K-blocks        Used   Available Use% Mounted on
ltfs-MDT0000_UUID      307826072       36904   281574768   1% /mnt/lfs[MDT:0]
ltfs-MDT0001_UUID      307826072       36452   281575220   1% /mnt/lfs[MDT:1]
ltfs-MDT0002_UUID      307826072       36600   281575072   1% /mnt/lfs[MDT:2]
ltfs-MDT0003_UUID      307826072       36300   281575372   1% /mnt/lfs[MDT:3]
ltfs-OST0000_UUID    15962575136     1027740 15156068868   1% /mnt/lfs[OST:0]
ltfs-OST0001_UUID    15962575136     1027780 15156067516   1% /mnt/lfs[OST:1]
ltfs-OST0002_UUID    15962575136     1027772 15156074212   1% /mnt/lfs[OST:2]
ltfs-OST0003_UUID    15962575136     1027756 15156067860   1% /mnt/lfs[OST:3]
ltfs-OST0004_UUID    15962575136     1027728 15156058224   1% /mnt/lfs[OST:4]
ltfs-OST0005_UUID    15962575136     1027772 15156057668   1% /mnt/lfs[OST:5]
ltfs-OST0006_UUID    15962575136     1027768 15156058568   1% /mnt/lfs[OST:6]
ltfs-OST0007_UUID    15962575136     1027792 15156056752   1% /mnt/lfs[OST:7]


filesystem_summary:  127700601088     8222108 121248509668   1% /mnt/lfs

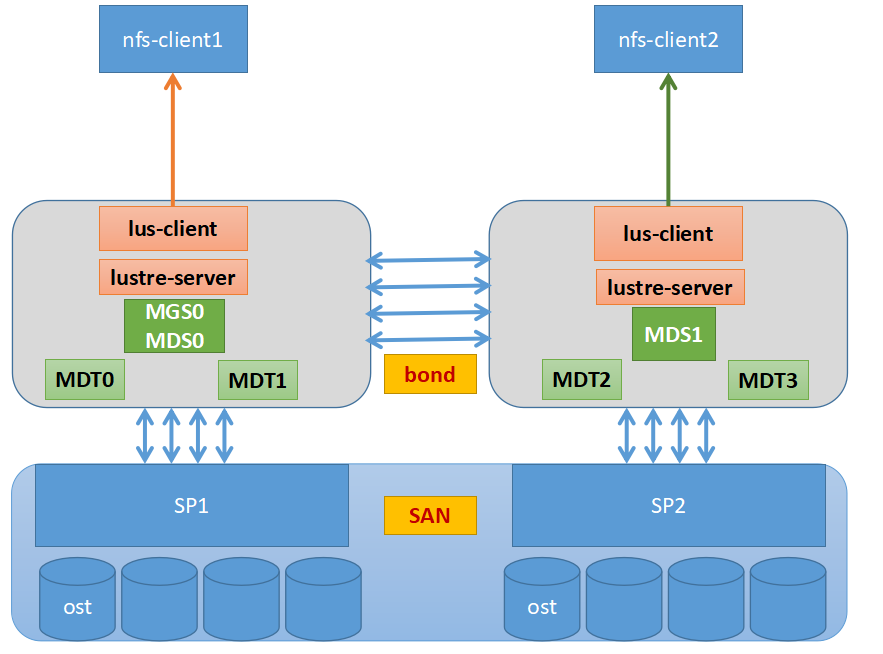

Structure ias flow:



After testing, under the current structure, the write performance of 500,000 "8k" small files is:
NFSclient1——IOPS：28,000;  bandwidth——230MB
NFSclient1——IOPS：27,500;  bandwidth——220MB


Now I want to improve the performance of small files to a better level，May I ask if there is a better way。


I have noticed a feature called "MIP-IO" that can improve small file performance, but I don't know how to deploy this feature. Is there any way to improve small file performance？
