[lustre-discuss] About Lustre small files performace(8k) improve

[Cameron Harr]

I'll assume here you're referring to MPI-IO, which is not really a
"feature" but a way to perform parallel I/O using the message passing
interface (MPI) stack. There can also be different interpretations of
what MPI-IO exactly means: many HPC applications (and benchmarks such as
IOR) use MPI and can write out data in parallel using various I/O APIs.
One of those APIs for IOR is "mpiio", from the web page:

-a S api – API for I/O [POSIX|MPIIO|HDF5|HDFS|S3|S3_EMC|NCMPI|RADOS] In
short, running parallel threads to write files will usually boost your
IOPs to a point, though which API you choose should probably reflect
what your real-life applications use. Cameron

On 3/18/23 2:44 AM, 王烁斌 via lustre-discuss wrote:
> Hi all,
>
> This is my Lustre FS.
> UUID                   1K-blocks        Used   Available Use% Mounted on
> ltfs-MDT0000_UUID      307826072       36904   281574768  1%
> /mnt/lfs[MDT:0]
> ltfs-MDT0001_UUID      307826072       36452   281575220  1%
> /mnt/lfs[MDT:1]
> ltfs-MDT0002_UUID      307826072       36600   281575072  1%
> /mnt/lfs[MDT:2]
> ltfs-MDT0003_UUID      307826072       36300   281575372  1%
> /mnt/lfs[MDT:3]
> ltfs-OST0000_UUID    15962575136     1027740 15156068868  1%
> /mnt/lfs[OST:0]
> ltfs-OST0001_UUID    15962575136     1027780 15156067516  1%
> /mnt/lfs[OST:1]
> ltfs-OST0002_UUID    15962575136     1027772 15156074212  1%
> /mnt/lfs[OST:2]
> ltfs-OST0003_UUID    15962575136     1027756 15156067860  1%
> /mnt/lfs[OST:3]
> ltfs-OST0004_UUID    15962575136     1027728 15156058224  1%
> /mnt/lfs[OST:4]
> ltfs-OST0005_UUID    15962575136     1027772 15156057668  1%
> /mnt/lfs[OST:5]
> ltfs-OST0006_UUID    15962575136     1027768 15156058568  1%
> /mnt/lfs[OST:6]
> ltfs-OST0007_UUID    15962575136     1027792 15156056752  1%
> /mnt/lfs[OST:7]
>
> filesystem_summary:  127700601088     8222108 121248509668   1% /mnt/lfs
>

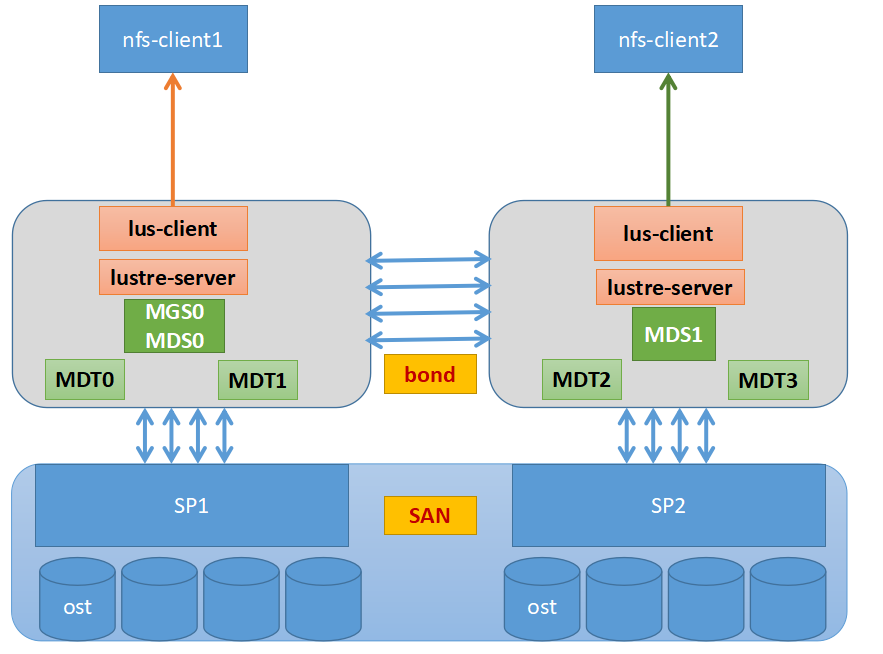

> Structure ias flow:
>
> After testing, under the current structure, the write performance of
> 500,000 "8k" small files is:
> NFSclient1——IOPS：28,000;  bandwidth——230MB
> NFSclient1——IOPS：27,500;  bandwidth——220MB
>
> Now I want to improve the performance of small files to a better
> level，May I ask if there is a better way。
>
> I have noticed a feature called "MIP-IO" that can improve small file
> performance, but I don't know how to deploy this feature. Is there any
> way to improve small file performance？
>
>
>
>
